12V 18Ah LiFePO4 Rechargeable Lithium Battery
Model:EM-12V/18AH
Voltage(V):12.8
Capacity(Ah):18
Size (L*W*H)(mm):181 x 77 x 170
Weight(kg):2.3
Product Introduction
The 12V 18Ah LiFePO4 battery is a versatile energy solution for solar trackers, medical devices, and small electric vehicles.

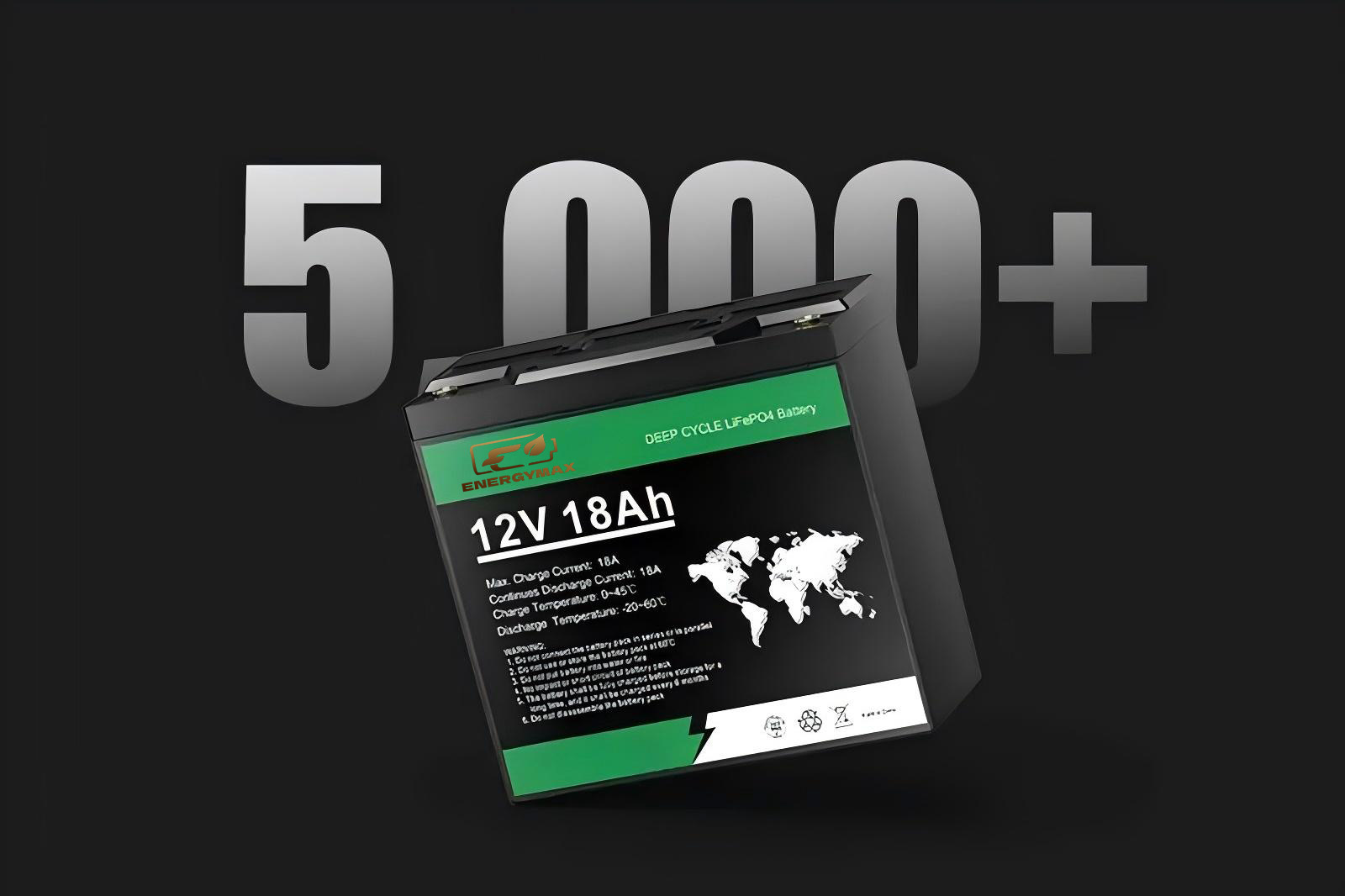

Exceptional Longevity
Over 5000 cycles, ensuring cost efficiency.
Advanced Safety
Built-in protection against thermal and electrical risks.
Wide Compatibility
Supports a variety of solar and electronic systems.
Energy Efficient
Low self-discharge rate for extended standby power.
Technical Data
If you have any questions during the browsing process, please feel free tocontact us and communicate with us at any time.
| Nominal Voltage | 12.8V |
| Nominal Capacity | 18Ah |
| Battery Pack Energy | 230.4Wh |
| Chemistry | LiFePO4 |
| Working Voltage | 10-14.4V |
| Charging Voltage | 14.4V |
| Max. Charging Current | 18A |
| Max. Discharge Current | 18A |
| Charging Temperature | 0-45℃ |
| Discharge Temperature | -20-45℃ |
| Storage Temperature | -20-45℃ |
| Design Life | 15years (25℃/77℉) |
| Cycle Life | ＞5000 times (25℃/80%DOD) |
| Altitude | ＜2000m |
| Weight | 2.3kg |
| Self-Consumption Power | ＜3%， Every Month |
| Output Terminal | M5 threaded hole |
| LCD | NO |
| Communication | NO |
| Dimensions | 181 x 77 x 170 mm |
